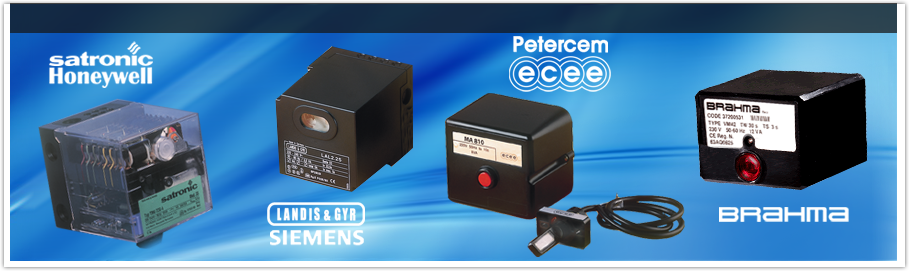

Siemens Burner Sequence controllers offer fully integrated control in a single module, saving valuable floor space over non-integrated systems, which is part of Burner Management Systems. There are various models available with different specifications for various applications Oil Burner Controllers & Gas Burner Controllers. Each system is designed to meet or exceed the reliability and safety requirements of the industrial heating industry. The burner controls are used for the start up, supervision and control of oil, gas burners in intermittent operation. Yellow burning flames are supervised with photo resistive Photocells, blue burning with blue-flame sensors, UV Flame Detectors. Models which are widely used are LOA 24, LGB22, LME11, LME22, LMG21, LAL1.25, LAL2.25, LFL1.122, LFL1.322, LFL1.635, LAE1, LEC1, LFE1, LGD1, LOK16, LGK16.
Petercem Oil burner sequence controllers are capable of controlling and monitoring oil burners of capacity 30 kg to 350 Kw output. In case of non ignition of the burner, the equipment is automatically brought to interlock position after the safety time. The suitable burner flame detectors are photocells. These are controls and safety equipment for oil burners. These controls are provided with amplifier for flame detection. It utilizes the flame sensor with photo resistant photocell Model 8205, 8209 .Petercem gas burner controller unit is also available which can be use with U.V.Detector Model 8300. These Burner Programmers are used as Burner Spare Parts, Boiler Spare Parts for Thermax Boilers. Models in Demand : MA 55 , MA 810 , MA 150 , GU 336.
Brahma burner controllers for gas, oil or dual fuel burners are capable of controlling and monitoring Industrial Oil, Gas burners of medium to high capacity for non permanent operation with or without fan in the combustion circuit. All these Burner Programmers perform non-volatile lock-outs, condition from which a restart of the system is only possible by means of manual reset. Their technical and manufacturing characteristics and the variety of models make Burner Control Box suitable for monobloc burners, hot air generators, steam boilers, kilns, furnaces etc .These Burner Controls mainly categorized under Boiler Spares & Burner Spares. The most popular Brahma burner controls are model CE-SE-ME– CM ,SM592 ,MM, automatic gas burner controls ; GR3 automatic oil burner controls ; RE3 Flame detection device for gas VM41 , VM42 automatic control systems for forced draught burners for gaseous fuels ; MF2 Automatic control systems for forced draught burners for gas and oil.
Honeywell / Satronic control box are capable of controlling and monitoring medium to high performance oil, gas burners in single or two stage versions.These Burner Programmer can be used, as preferred, for multi-stage or modulating operation with burners of any nominal rating as well as in direct air heaters. Oil Gas Burner Sequence Controllers provides a safe light-up and shut-down sequence for the burner and incorporates pre-purge, pre-ignition, post ignition and lockout safety time intervals. The control box is designed for maximum safety in case of fluctuations in the voltage supply. The built in information system not only provides a continuous monitoring of the actual state of the box but also informs about the cause of a possible lockout. Different model designations identify the control boxes according to programmed times for varying national standards, or for special applications and also as Boiler Spares, Burner Spare Parts. The most widely used models are MMI 810, MMI 813, DLG 976, TMO 720-4 , TMG 740-3, TME 780 .
